ZKCNA7KN

Electric Oven

Name: ZKCNA7KN
Brand: Zanussi
SKU: ZKCNA7KN
Rating: 3.5 (10 reviews)

Product details

3.5 (10)

Product information sheet

Energy RatingA

Built-in Dimensions (mm) (HxWxD)875x560x550

FunctionsAirFry, Bottom heat, Conventional/Traditional cooking, Defrost, Fast grilling, Light, Moist conventional baking, Pizza setting, True fan cooking, Turbo grilling

ConnectivityNo

Total electricity loading, W4900

SteamCategoryNo

Type of timer min.LUX

Cavity Size (L)61

Safety warnings

Essential precautions to ensure safe usage and installation.

Specification

Top Oven Functions:
Economy variable grill
Top heat : The top element can be used on its own to finish and brown food.
Bottom heat: Bottom heating for warming and reheating
Main Oven Functions:
Fan Controlled Defrosting: Suitable for delicate items such as cream cakes, this light defrost circulates room temperature air around the food slowly, defrosting it hygienically in less than 1/2 the time!

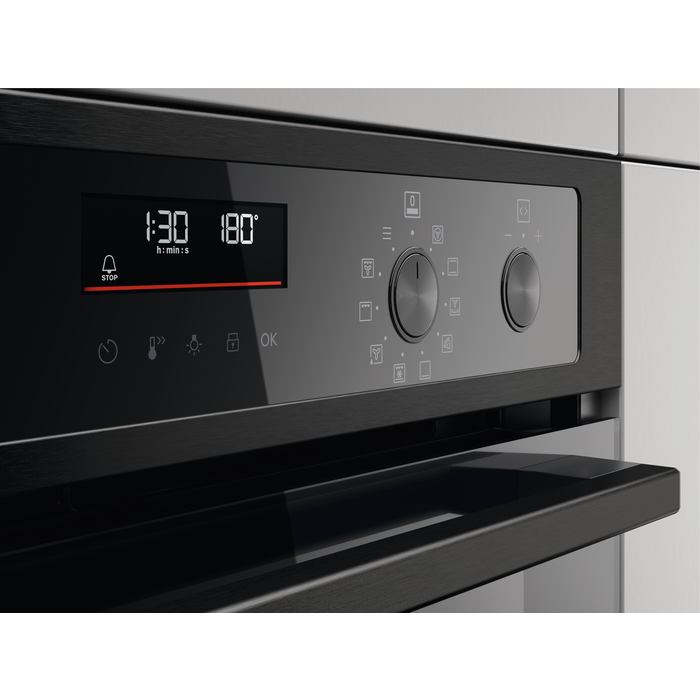

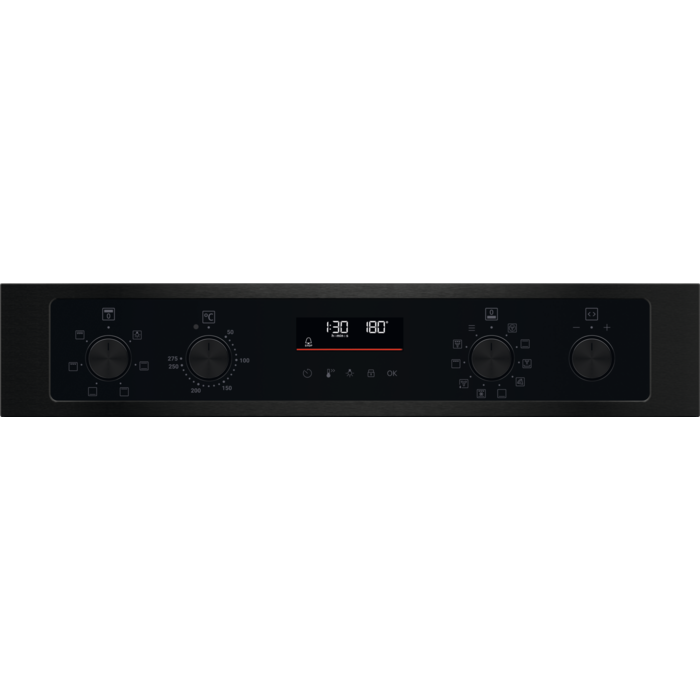

Retractable Oven controls with LED display
Economy variable grill
Oven features:
Pizza cooking

performance

Functions: AirFry, Bottom heat, Conventional/Traditional cooking, Defrost, Fast grilling, Light, Moist conventional baking, Pizza setting, True fan cooking, Turbo grilling
Connectivity: No
Type of timer min.: LUX
Cavity Size (L): 61
Self-Cleaning?: Catalytic
Oven knob type: Pop in / Pop out flat with sungrind
Max power grill - Top Oven: 2900
Max power oven - Top Oven: 2750
Temperature range: 50°C - 300°C
Largest Surface area: 1175
Door surface temperature maximum in K - Top Oven: 55
Nø of cavities: 2

Installation

Built-in Dimensions (mm) (HxWxD): 875x560x550
Total electricity loading, W: 4900
Dimensions (mm) (HxWxD): 888x594x568
Gross weight (kg): 51.2
Net Weight: 50
Plug or Hardwired: No
Voltage (V): 220-240
Required Fuse: 30
Maximum Microwave output (W): 0
Colour: Black

energy

Energy Rating: A
Energy efficiency index EEI: 95.1
Energy consumption, conventional mode, kWh per cycle: 0.92
Energy consumption, hot air, kWh/cycle: 0.77
Power (w): 25
Oven Energy Source: Electrical
Frequency (Hz): 50-60
Energy consumption per EU standard cycle: 0.78

other

Product number (PNC): 944 171 766
SteamCategory: No
Interior light: 1, Back&Side halogen
Product Type: Double Cavity Built-in Electric Oven
Tray types included: 1 AirFry tray, 1 Dripping pan black enamel

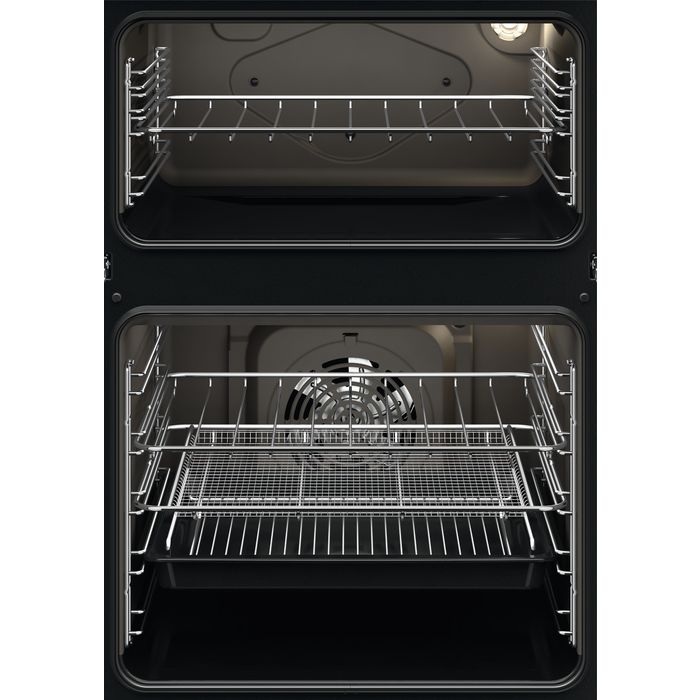

Main Oven - Shelves Included: 1 Trivet chromed, 1 Wire shelf chromed
Runners: Grid Runners Easy Entry
Cavity coating: Catalytic
Bar Code: 7332543992270
Top Oven Cooking Functions: Bottom, Fan + light, Grill + top, Grill + top + fan, Light, Ring (10) + top (50) + fan (w/o Lamp), Ring + bottom + fan, Ring + fan, Top + bottom
Cooking Function Bottom Oven: Bottom, Grill, Light, Top, Top + bottom, Top + grill
Information for professionals about non-destructive disassembly according to Regulation EU 66/2014

For appliances with digital elements (connected), the supply of updates for these elements is available for a minimum of 24 months.

Product details

The Series 40 AirFry oven provides a healthier alternative to oil frying. You can now enjoy the crunch of perfectly fried food - including your regular favourites as well as adding a tasty crunch to vegetables. For tender insides and crispy outsides with little or no oil.

Crispy food made simple with AirFry

The AirFry function with the innovative perforated AirFry tray lets air circulate around your food to evenly heat it from all angles. Removing the need for turning, so you can just enjoy the crunch of perfectly fried food.

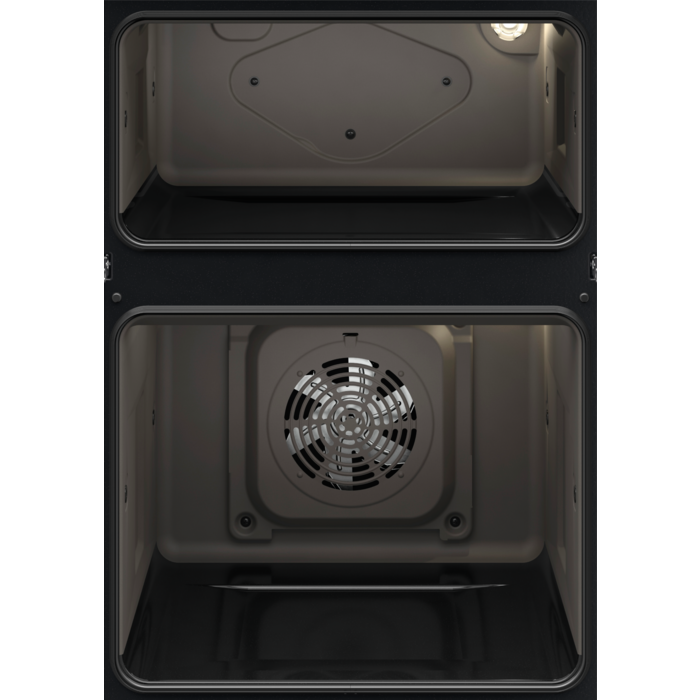

Double Oven—multitasking made easy

Cook two meals at once easily. With the Double Oven you have the choice of fan cooking, conventional cooking and grilling. So you can bake a cake or roast a chicken at the same time. Making your kitchen adventure a little more convenient.

Say goodbye to scrubbing your oven

Catalytic Cleaning helps stop the build-up of dirt and grease in the oven. This feature automatically begins to work when the temperature reaches 250°C. Getting rid of cooking residue, so you don't have to.

Convection oven, for Even Cooking

The hot air generated inside the oven during cooking is moved around with a fan, so all your dishes receive the same amount of heat. This lets the oven heat up faster, which means you’ll get the same results using 20% lower temperatures, saving time and using less energy.

Assisted cooking programs and LED Display make cooking more fun.

Now you can pay more attention to friends and family while you cook. Easy-to-read 2-colour LED display makes it simple to use assisted cooking functions while viewing the time, temperature and progress of your cooking,
